BORCO Dock

BORCO Dock

Freeport, Bahamas

ESDC Engineering Project Scope included the Engineering, Design, Equipment Specification, and Project Consulting of an Inland Marine Dock. ESDC Engineering provided Engineering Services for Mechanical, Civil/Structural, Electrical, Automation/Controls and Fire Protection.

This project was for the expansion of an Inland Marine Dock Terminal Facility that included:

  • Three (3) 16” Load Arms with Vapor Piping
  • One (1) 20” Load Arm
  • Vapor System including Marine Safety Skid and Vapor Combustion Unit
  • Dock Manifold System
  • Dock and Tank Fire Protection Systems.

BridgeTex Pipeline Stations

BridgeTex Pipeline Stations

Various Texas Locations

ESDC Engineering Scope included the Engineering, Design, Equipment Specification, Material Management Services, Project Consulting and Project Management of five grass roots Pipeline Pump Stations. ESDC Engineering provided Engineering Services for Mechanical, Civil/Structural, Electrical and Automation/Controls. ESDC Engineering provided Project and Construction Management services from site development to commissioning.

This project was comprised of five (5) grass root Crude Oil Pipeline Pump Stations to support the new BridgeTex 12,700 bph pipeline. Each pump station included:

  • Dual 4,500 hp mainline pumps
  • Sump systems
  • Process piping
  • Instrumentation
  • Automation and Controls
  • New electrical utility services
  • VFDs
  • MCC Buildings
  • Maintenance Buildings
  • Additive Injection Systems
  • Access Roads

Perth Amboy Facility

Perth Amboy Facility

Perth Amboy, NJ

(Truck Loading Rack / Rail Car Offload / Tank Farm Upgrade)

ESDC Engineering Project Scope included the Engineering, Design, Equipment Specification and Project Consulting of a new three bay Truck Loading Rack, Tank Farm Upgrade for a Marine Facility, and a new Rail Car Offloading Terminal. ESDC Engineering provided Engineering Services for Mechanical, Civil/Structural, Electrical Automation/Controls and Fire Protection.

This project comprised of the installations that included:

  • A new three (3) lane truck loading rack with ratio blending system
  • 300’ long Manifold system for twelve (12) product storage tanks, six (6) piping systems for the marine dock, and two (2) pipelines
  • 104 rail car loading spots with containment pans
  • Elevated walkway system for access to top of rail cars

Barnhart Crude Oil Terminal

Barnhart Crude Oil Terminal

Ozona, TX

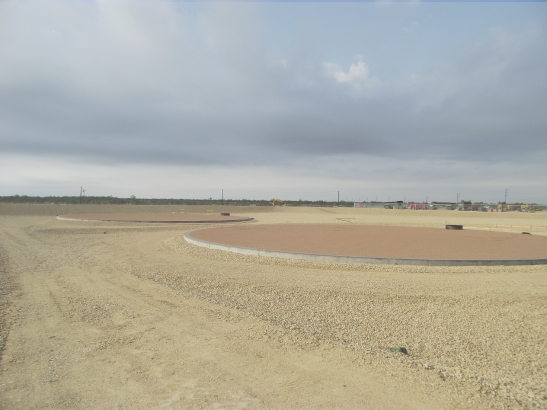

ESDC Engineering Scope included the Engineering, Design, Equipment Specification, Material Management Services, Project Consulting and Construction Management of a pipeline receipt, truck offloading, tank storage, and pipeline injection terminal. ESDC Engineering provided Engineering Services for Mechanical, Civil/Structural, Electrical and Automation/Controls. ESDC provided Construction Management services from site development to commissioning.

This project included the installation of grass roots Crude Oil Pipeline Terminal associated with the Longhorn pipeline that included:

  • Six (6) truck offload spots
  • Pipeline receipt manifold for four (4) incoming pipelines
  • Two (2) 80,000 bbl storage tanks
  • Additive injection system
  • Metering skid
  • Prover
  • Sampling system
  • Mainline pump
  • Sump system
  • Process piping and instrumentation
  • Automation and Controls
  • New electrical utility services
  • VFD
  • Buildings (MCC / Office-Warehouse / Lab)
  • Stormwater containment
  • Tank containment

Fire Protection Projects

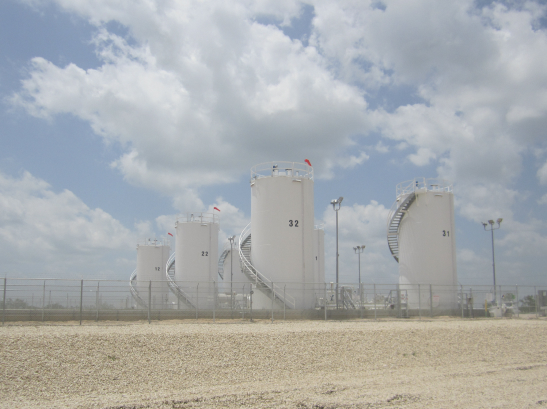

Corpus Christi Tank Farm & Terminal

Corpus Christi Tank Farm & Terminal

Corpus Christi, TX

ESDC Engineering Scope included the Engineering, Design, Equipment Specification and Project Consulting for the following items:

  • Ten Thousand Two Hundred (10,200) Feet Of Underground Fire Water Main
  • Thirty-Three (33) High Volume Fire Hydrants
  • Ten (10) Semi-Fixed Foam Fire Suppression Systems for Petroleum Product Storage Tanks.
  • Deluge Water Spray Fire Suppression System For Six (6) LPG Bullet Tanks
  • Fire Water Storage Tank
  • One (1) Electric Driven Fire Pump
  • One (1) Diesel Driven Fire Pump
  • Fire Detection System For Fire Pump Building & Six (6) LPG Bullet Tanks
  • NFPA 30 Tank Spacing Layout

Chicago Tank Farm & Terminal

Chicago Tank Farm & Terminal

Chicago, IL

ESDC Engineering Scope included the Engineering, Design, Equipment Specification and Project Consulting for the following items:

  • Six Thousand Two Hundred (6,200) Feet Of Underground Fire Water Main
  • Thirty-Four (34) Fire Hydrants
  • Eleven (11) Semi-Fixed Foam Fire Suppression System for Petroleum Product Storage Tanks.
  • Deluge Foam Fire Suppression System for Ethanol Offloading Rack
  • Deluge Water Spray Fire Suppression System For Additive Tank
  • Fire Detection System for Foam Building, Ethanol Offloading Rack & Additive Tank
  • Permitting Services

Houston Tank Farm & Terminal

Houston Tank Farm & Terminal

Houston, TX

ESDC Engineering Scope included the Engineering, Design, Equipment Specification and Project Consulting for the following items:

  • Sixteen (16) Fixed Foam Fire Suppression Systems for Petroleum Product Storage Tanks.
  • Eight (8) Fire Hydrants
  • Four (4) Foam Riser Manifolds With Bladder Tanks
  • NFPA 30 Tank Spacing Layout
  • Permitting Services
